Type C mobile intensive care unit

Mobile intensive care unit on MAN TGE

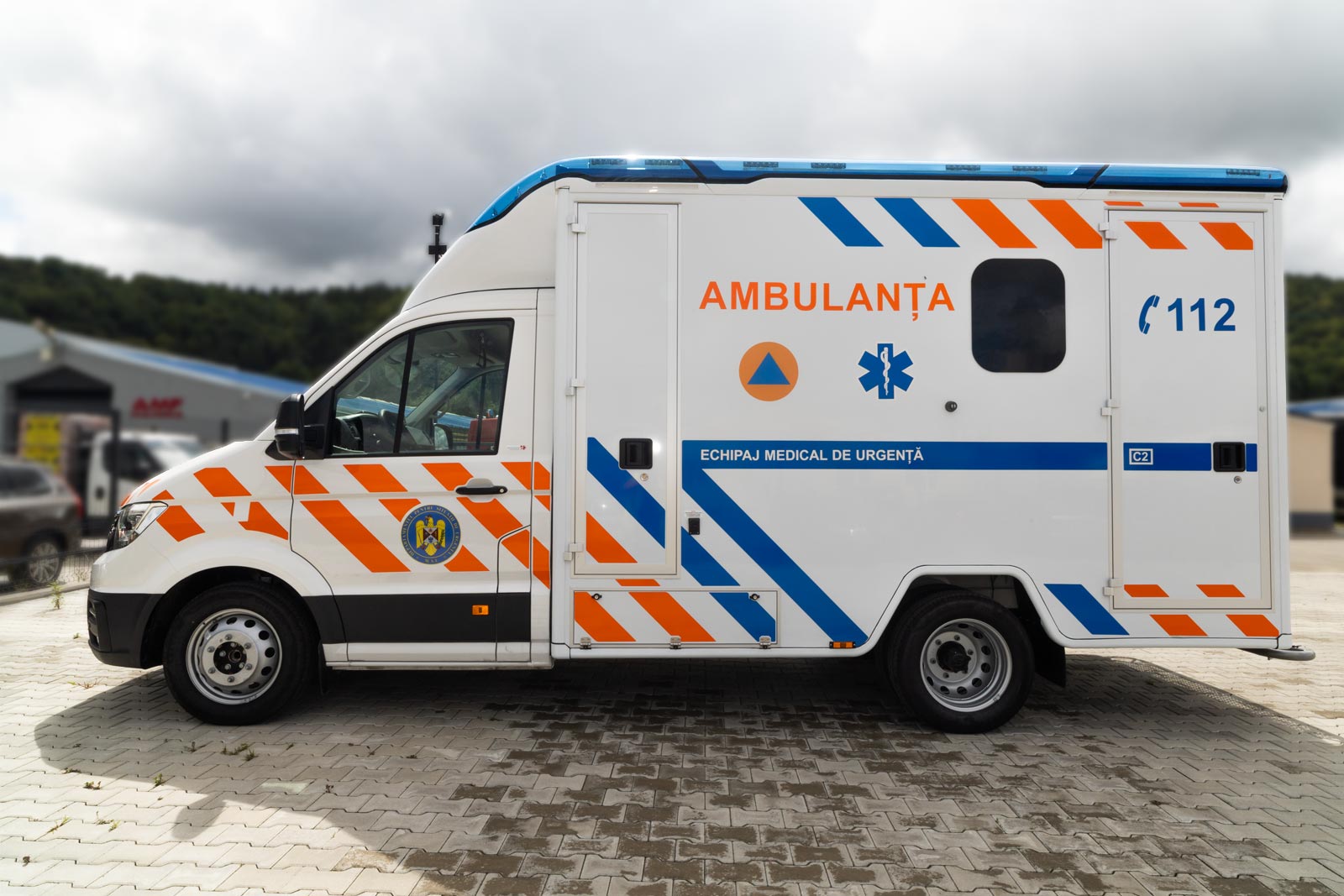

White MAN TGE Type C intensive care ambulance with box body and high-visibility markings

The Type C is Deltamed’s mobile intensive care unit: a box body in sandwich panels with aluminium walls, built on a 5-tonne MAN TGE chassis with twin rear wheels. The interior offers 3650 × 2010 × 1950 mm of working space, lined in ABS, with a full technical compartment at the front left, external hatches to tall storage compartments for intervention equipment on both rear sides, and underfloor storage. A ceiling console carries electrical and oxygen connections for medical devices, and the hydraulic stretcher table slides laterally for access from either side.

The vehicle is designed to carry a complete intensive-care inventory: defibrillator-monitor, ventilator, two syringe pumps, fixed and portable suction units, ultrasound, a chest-compression device, and full immobilisation and patient-transport equipment — scoop stretcher, spine board, KED, vacuum mattress and splints, and a powered main stretcher with child restraint system — to EN 1789. A body-integrated light warning system offers multiple signalling configurations.

Photo gallery

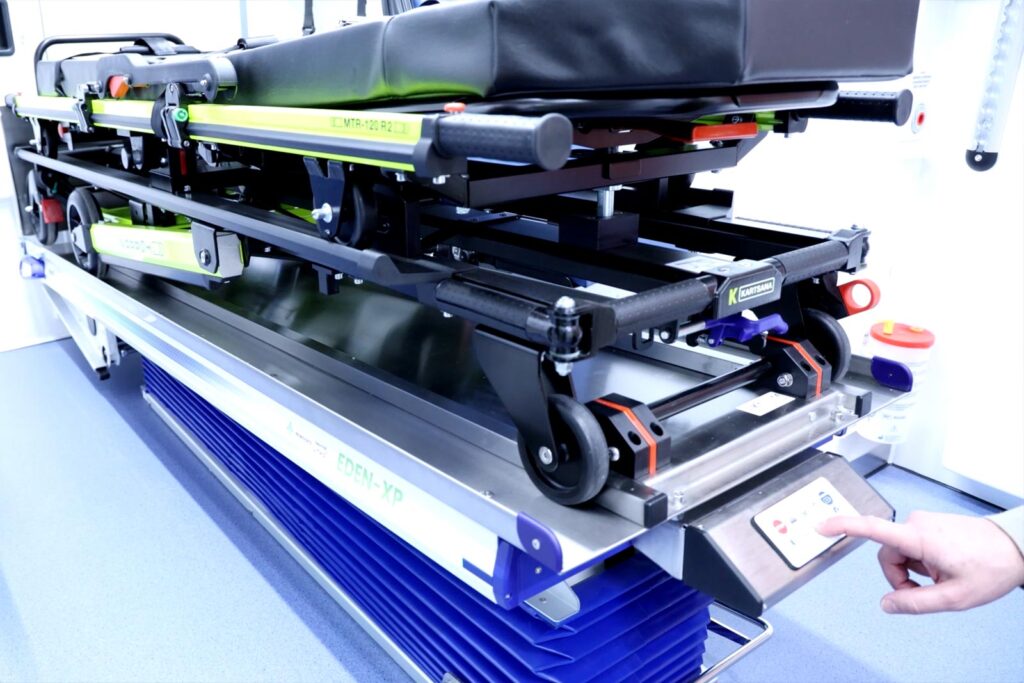

Ambulance stretcher mounted on a hydraulic power-assisted loading platform
Stretcher mounted on a hydraulic platform

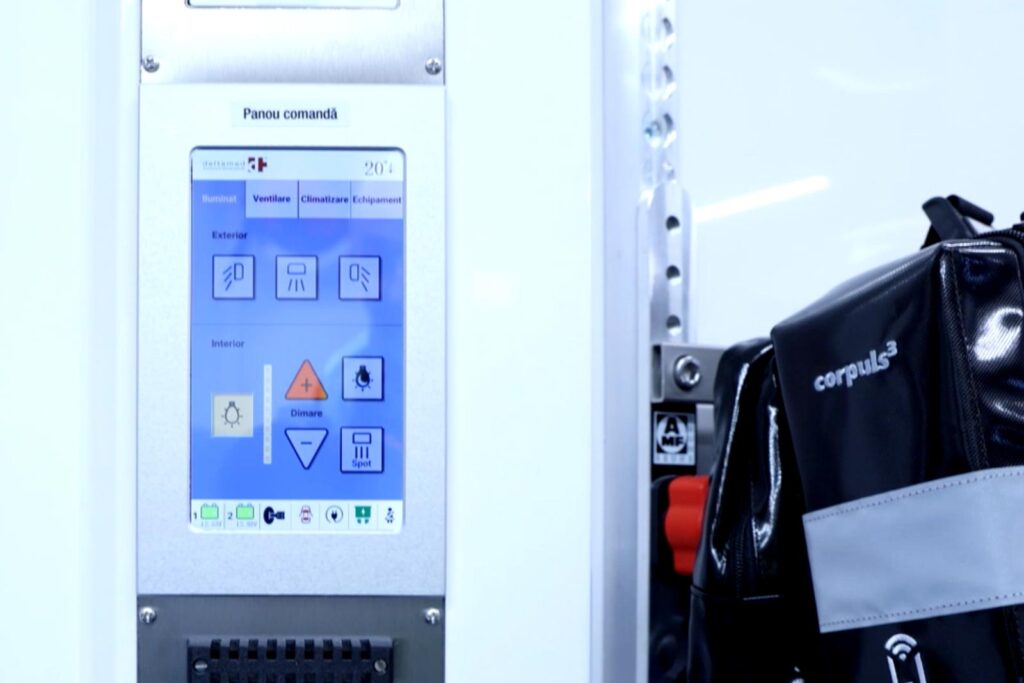

A touchscreen digital control panel managing emergency vehicle systems
Touchscreen digital control panel

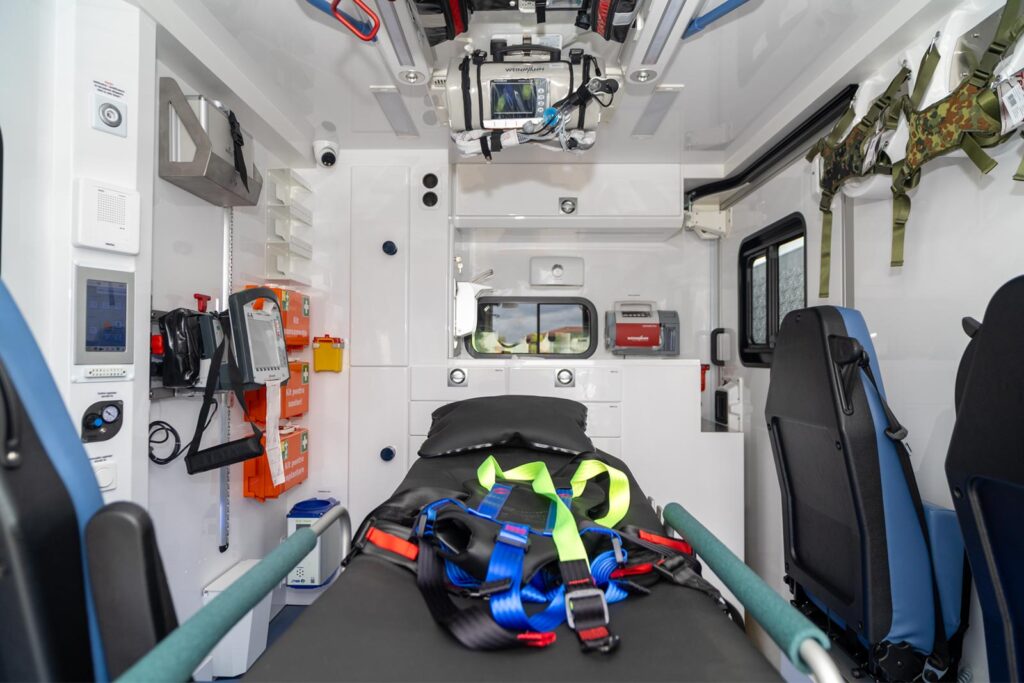

Interior of an ambulance medical cabin featuring a central patient stretcher surrounded by medical equipment.
Patient compartment layout

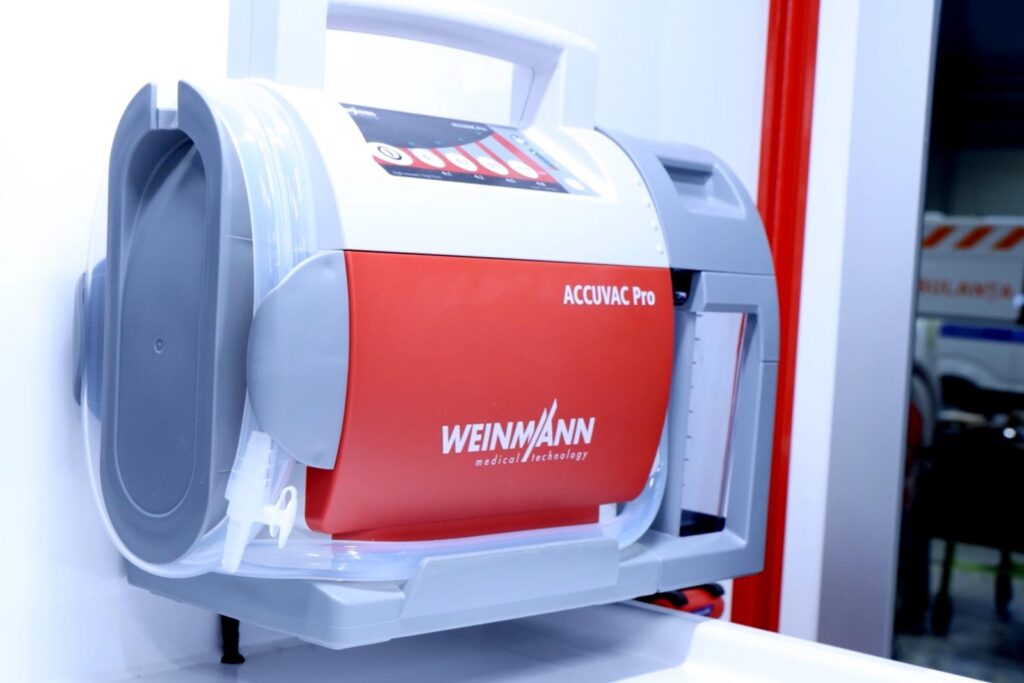

Emergency medical suction pump installed on a wall mount inside an ambulance
Emergency medical suction pump

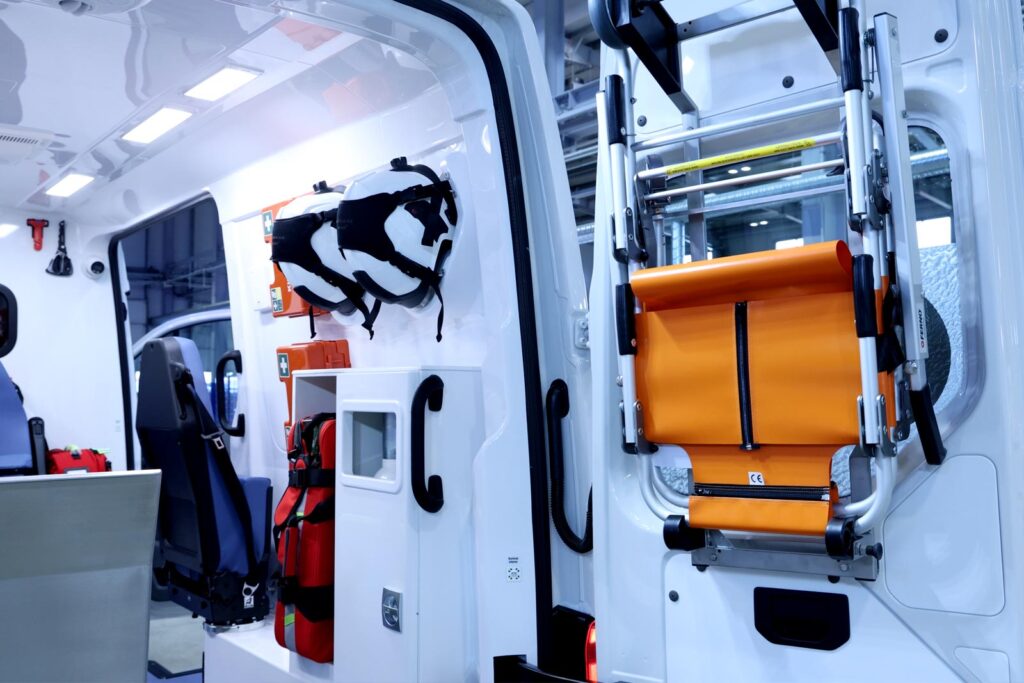

Folded ambulance stair chair mounted on the rear door, with two white rescue helmets hanging on the interior wall
Folded ambulance stair chair mounted on the rear door

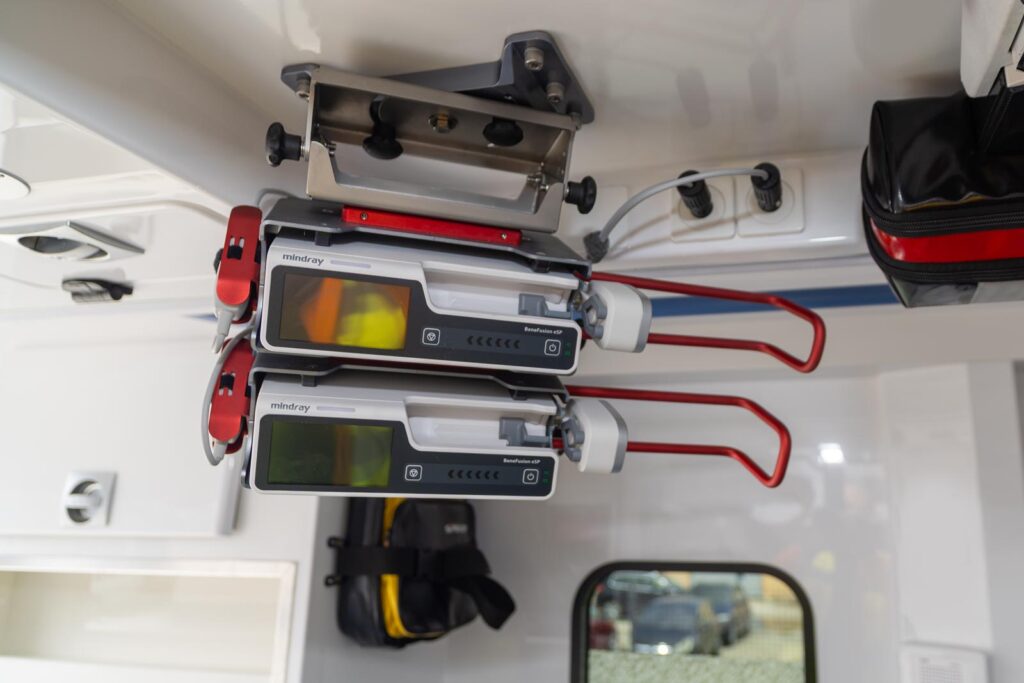

Close-up of two smart infusion syringe pumps stacked on a ceiling mount inside a modern emergency ambulance.
Ceiling-mounted infusion pumps

Specifications

Base vehicleMAN TGE chassis, 5.0 t, twin rear wheels
Drive & transmissionManual or automatic gearbox, 120 kW, rear-wheel drive
BodyBox body in sandwich panels with aluminium walls; ABS interior lining
Interior dimensions3650 × 2010 × 1950 mm (L × W × H)
AccessDouble rear door, sliding side door, external side hatches to rear storage compartments
Stretcher systemHydraulic stretcher table with lateral sliding
Attendant seating3 attendant seats with seat belts and occupancy sensors
Warning systemBody-integrated light warning system, multiple configurations

Documents

Frequently asked questions

How is the Type C different from the Type B?
The Type C is built as a box body rather than a converted van, which gives it a substantially larger patient compartment — 3650 × 2010 × 1950 mm — and the equipment capacity of a mobile intensive care unit, for critical patient transport.
What medical equipment does it carry?
A complete intensive-care inventory to EN 1789: defibrillator-monitor, ventilator, syringe pumps, fixed and portable suction, ultrasound, chest-compression device, and full immobilisation and transport equipment including a powered main stretcher.
What chassis is it built on?
On a 5-tonne MAN TGE chassis with twin rear wheels, available with manual or automatic transmission.
Mobile intensive care unit on a box body — maximum working space and equipment capacity for critical patient transport.
