Type B emergency ambulance

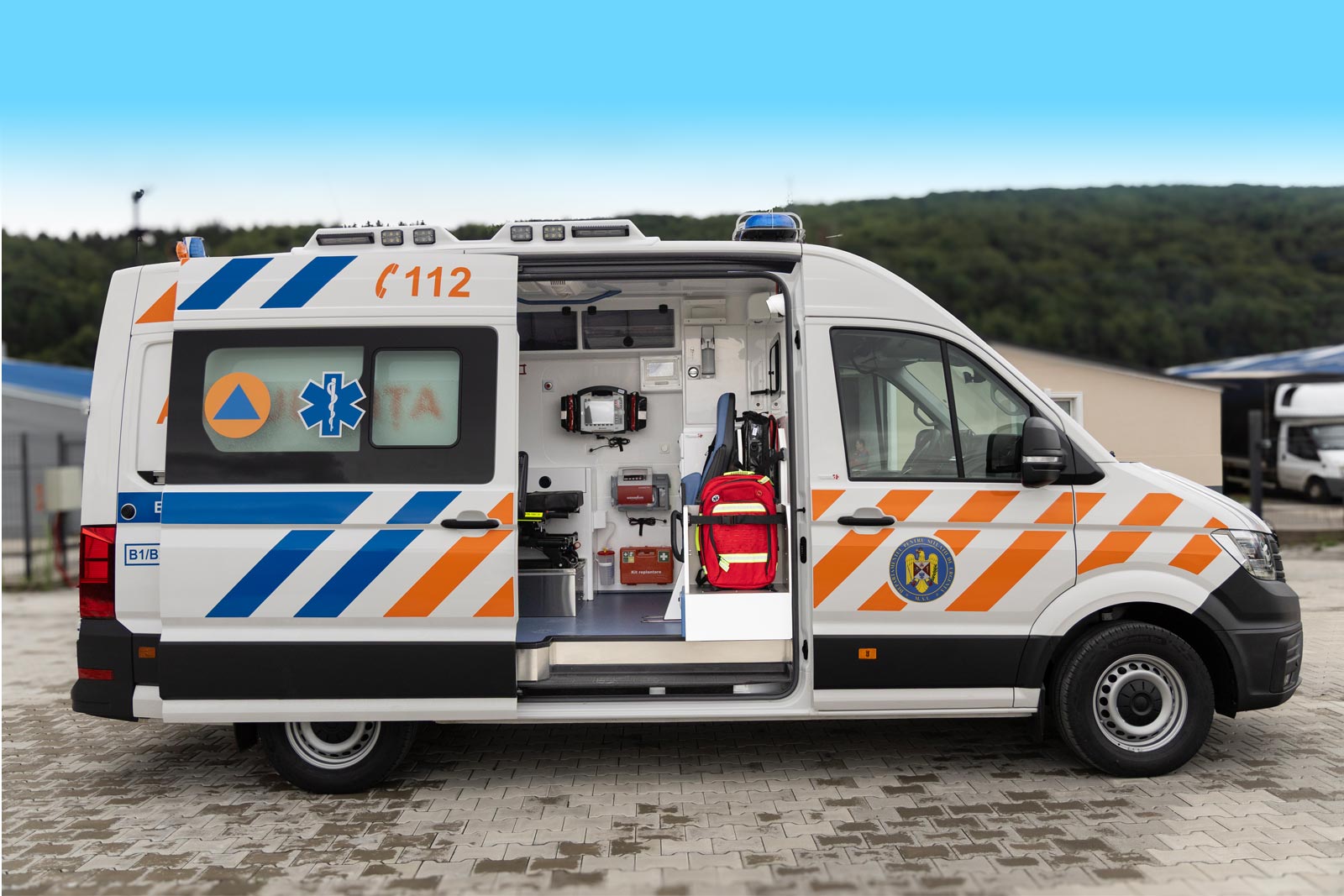

The Type B is Deltamed’s high-volume emergency ambulance, built on the Volkswagen Crafter van platform and produced in series on dedicated lines. The patient compartment is fully lined in thermoformed ABS over aluminium and stainless-steel backing panels, with high-performance thermal insulation and ABS-clad cabinetry offering multiple storage compartments.

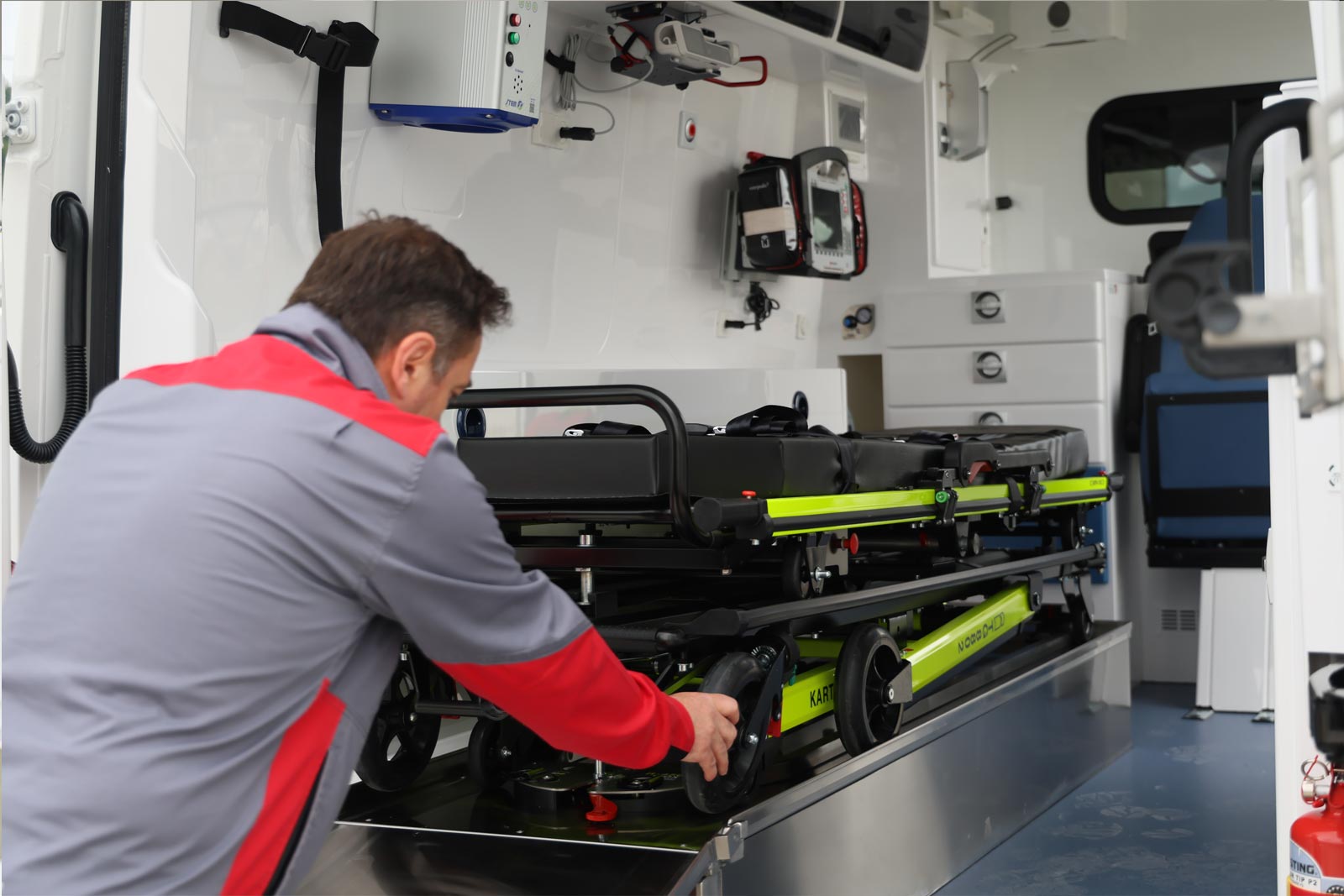

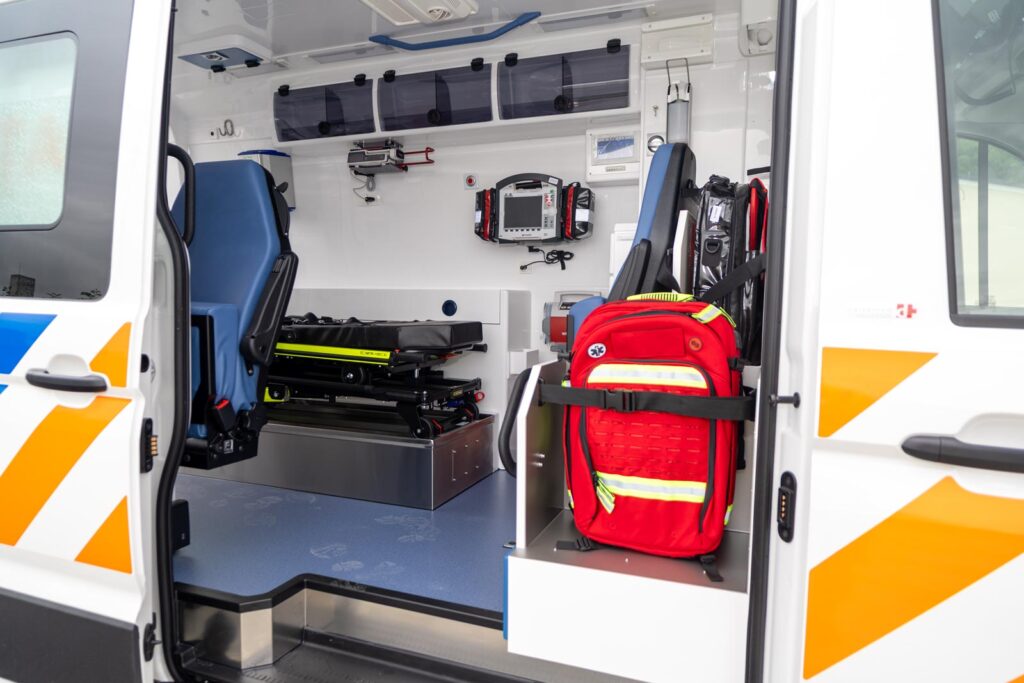

Climate is engineered for every operating state: 5 kW air conditioning, plus three independent heating sources — engine coolant while driving, electric while stationary on external power, and a diesel-fired heater running from the vehicle tank in any conditions. Compartment functions are controlled through push-buttons and a touch screen. Each unit is delivered fully equipped to the customer’s configuration, with stretcher systems, defibrillator-monitor, ventilator, suction and infusion equipment to EN 1789.
Photo gallery
Video
Specifications
| Base vehicle | Volkswagen Crafter panel van, 3.88 t, L3H2 |
| Drive & transmission | Automatic gearbox, 120 kW, rear-wheel or all-wheel drive |
| Access | Sliding right-hand door; rear doors opening to 260° |
| Interior lining | Thermoformed ABS on aluminium and stainless-steel backing panels |
| Climate control | 5 kW air conditioning; triple heating — engine coolant, electric, diesel-fired |
| Controls | Push-button and touch-screen control of compartment functions |
| Attendant seating | Attendant seats with seat belts and occupancy sensors |
| Certification | Tested to EN 1789, including dynamic testing |
